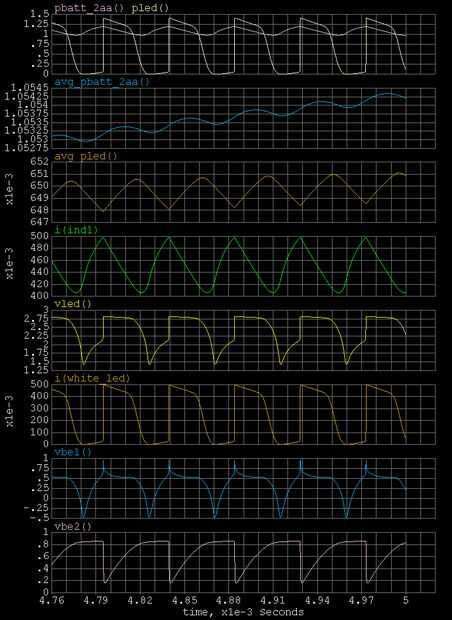

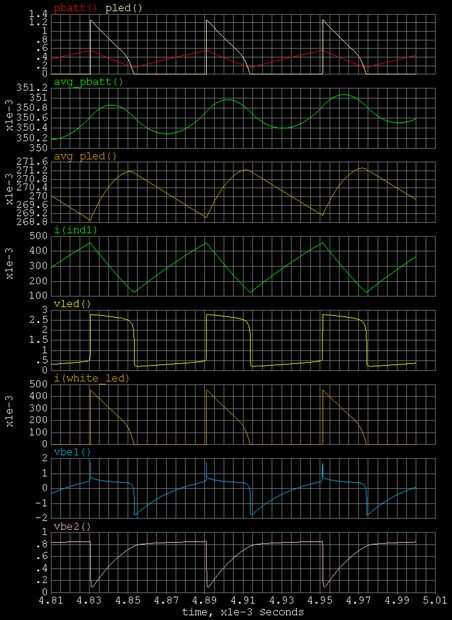

Paso 2: Adición de simulación
Modelos de simulación SPICE
.Model 2N4401 NPN (es = 26.03f Xti = 3 PE = 1.11 Vaf = 90.7 Bf = 4.292K Ne = 1.244
+ Ise = 26.03f Ikf =. 2061 Xtb = 1.5 Br = 1.01 Nc = 2 Isc = Ikr 0 = 0 Rc =. 5
+ Cjc = 11.01 p Mjc =. Vjc 3763 =. 75 Fc =. Cje 5 = 24,07 p Mje =. 3641 Vje =. 75
+ Tr = 233.7n Tf = 466.5 p Itf = 0 Vtf = Xtf 0 = 0 Rb = 10)
* Fairchild pid = 2N4400 caso = TO92 * 88-09-13 creación de bam
.Model PN2222A NPN (es = 14.34f Xti = 3 PE = 1.11 Vaf = 74.03 Bf = 255.9 Ne = 1.307
+ Ise = 14.34f Ikf =. 2847 Xtb = 1.5 Br = 6.092 Nc = 2 Isc = Ikr 0 = 0 Rc = 1
+ Cjc = 7.306 p Mjc =. Vjc 3416 =. 75 Fc =. Cje 5 = 22.01 p Mje =. 377 Vje =. 75
+ Tr = 46.91n Tf = 411.1 p Itf =. 6 Vtf = 1.7 Xtf = Rb 3 = 10)
* Fairchild pid = caso 19 = TO92 * 88-09-07 creación de bam
Cree http://www.cree.com/products/xlamp_mle.asp
.MODEL MLE D + IS=1.7448E-21 + N=2.4195 + RS=2.1425 + XTI=45.900 + EG=2.5000
