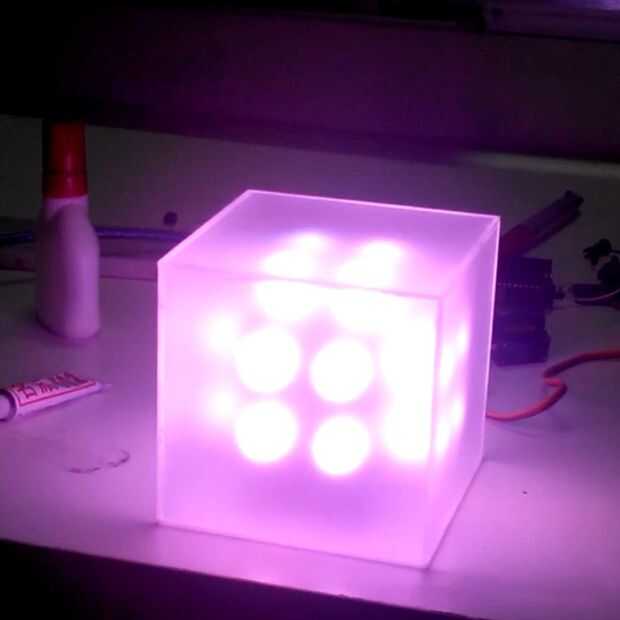

DIY una luz mágica caja (12 / 12 paso)

Paso 12: Código de Arduino conectado

#include //use lib de temporizador

#include

#define Register_ID 0

#define Register_2D 0x2D

#define Register_X0 0x32

#define Register_X1 0x33

#define Register_Y0 0x34

#define Register_Y1 0x35

#define Register_Z0 0x36

#define Register_Z1 0x37

int ADXAddress = 0xA7 >> 1;

variable para guardar la información del acelerómetro

int X0, X1, Xg;

int Y0, Y1, Yg;

int Z1, Z0, Zg;

pernos para el tricolor

ledx int = 9;

ledy int = 5;

ledz int = 6;

declarar 7 contadores

counterX int counterY, counterZ, counterT, counterx, countery, counterz;

3 variable para mantener el estado

int stateX, stateY, stateZ;

valor de la respiración

int valx = 60;

valy int = 130;

valz de int = 195;

velocidad de respiración

int fadeAmount1 = 3;

int fadeAmount2 = 6;

int fadeAmount3 = 9;

void setup() {}

Serial.Begin(9600); utilizar el puerto serie de depuración

inicial

Wire.Begin();

Delay(10);

Wire.beginTransmission(ADXAddress);

Wire.Write(Register_2D);

Wire.Write(8);

Wire.endTransmission();

pinMode (ledx, salida);

pinMode (ledy, salida);

pinMode (ledz, salida);

counterY = 0;

counterX = 0;

counterT = 0;

establecer el estado de X, Y, Z en estado

stateX = 0;

stateY = 0;

stateZ = 0;

}

void loop() {}

Apagar todas

digitalWrite (ledx, 0);

digitalWrite (ledy, 0);

digitalWrite (ledz, 0);

leer la información de X, Y, Z de la acc

Wire.beginTransmission(ADXAddress);

Wire.Write(Register_X0);

Wire.Write(Register_X1);

Wire.endTransmission();

Wire.requestFrom (ADXAddress, 2);

Si (Wire.available() < = 2);

{

X0 = Wire.read();

X1 = Wire.read();

X1 = X1 << 8;

XG = X0 + X1;

}

Wire.beginTransmission(ADXAddress);

Wire.Write(Register_Y0);

Wire.Write(Register_Y1);

Wire.endTransmission();

Wire.requestFrom (ADXAddress, 2);

Si (Wire.available() < = 2);

{

Y0 = Wire.read();

Y1 = Wire.read();

Y1 = Y1 << 8;

YG = Y0 + Y1;

}

Wire.beginTransmission(ADXAddress);

Wire.Write(Register_Z0);

Wire.Write(Register_Z1);

Wire.endTransmission();

Wire.requestFrom (ADXAddress, 2);

Si (Wire.available() < = 2);

{

Z0 = Wire.read();

Z1 = Wire.read();

Z1 = Z1 << 8;

ZG = Z0 + Z1;

}

juzgar si acc valor de X llega al umbral, agregue el contador

Si (Xg > = 500 || XG < = -500) {}

counterX ++;

Cuando se inicia el contador X, temporizador comenzará y entrar en función clara después de 0.5s

Si (counterX == 1) {}

MsTimer2::set (500, claro);

MsTimer2::start();

}

}

Si el counterX es más de 16 antes claro, abierto X estado trig (color auto-cambiar)

Si (counterX > = 16) {//16 puede cambiar a otro número, el más pequeño cuanto más sensible

stateX =! stateX;

mientras que (stateX == 1) {}

fading();

}

}

Si (Yg > = 500 || YG < = -500) {}

comprobación Y

counterY ++;

Si (counterY == 1) {}

MsTimer2::set (500, claro);

MsTimer2::start();

}

}

Si (counterY > = 16) {}

stateY =! stateY;

mientras que (stateY == 1) {}

following();

}

}

Si (Zg > = 500 || ZG < = -500) {}

Control Z

counterZ ++;

Si (counterZ == 1) {}

MsTimer2::set (500, claro);

MsTimer2::start();

}

}

Si (counterZ > = 14) {}

stateZ =! stateZ;

mientras que (stateZ == 1) {}

White();

}

}

Delay(6);

Serial.Print("X=");

Serial.Print(XG);

Serial.Print ("Y =");

Serial.Print(YG);

Serial.Print ("Z =");

Serial.Print(ZG);

Serial.Print ("CX =");

Serial.Print(counterX);

Serial.Print ("CY =");

Serial.Print(counterY);

Serial.Print ("CZ =");

Serial.println(counterZ);

}

void Clear() {}

borrar todos los contadores

counterX = 0;

counterx = 0;

counterY = 0;

countery = 0;

counterZ = 0;

counterz = 0;

}

void white() {}

color blanco

digitalWrite (ledx, 1);

digitalWrite (ledy, 1);

digitalWrite (ledz, 1);

leer la acc de Z

Wire.beginTransmission(ADXAddress);

Wire.Write(Register_Z0);

Wire.Write(Register_Z1);

Wire.endTransmission();

Wire.requestFrom (ADXAddress, 2);

Si (Wire.available() < = 2);

{

Z0 = Wire.read();

Z1 = Wire.read();

Z1 = Z1 << 8;

ZG = Z0 + Z1;

}

Si (Zg > = 500 || ZG < = -500) {}

counterz ++;

Si (counterz == 1) {}

MsTimer2::set (500, claro);

MsTimer2::start();

}

}

Si counterZ es de más de 140, cerrar el estado autónomo de Z y volver a la función principal

Si (counterz > = 140) {}

stateZ =! stateZ;

retorno;

}

Serial.Print("Z=");

Serial.Print(ZG);

Serial.Print ("CZ =");

Serial.println(counterz);

}

void following() {}

跟随姿态变色的程序

int xfollow, yfollow, zfollow;

Wire.beginTransmission(ADXAddress);

Wire.Write(Register_X0);

Wire.Write(Register_X1);

Wire.endTransmission();

Wire.requestFrom (ADXAddress, 2);

Si (Wire.available() < = 2);

{

X0 = Wire.read();

X1 = Wire.read();

X1 = X1 << 8;

XG = X0 + X1;

}

Wire.beginTransmission(ADXAddress);

Wire.Write(Register_Y0);

Wire.Write(Register_Y1);

Wire.endTransmission();

Wire.requestFrom (ADXAddress, 2);

Si (Wire.available() < = 2);

{

Y0 = Wire.read();

Y1 = Wire.read();

Y1 = Y1 << 8;

YG = Y0 + Y1;

}

Wire.beginTransmission(ADXAddress);

Wire.Write(Register_Z0);

Wire.Write(Register_Z1);

Wire.endTransmission();

Wire.requestFrom (ADXAddress, 2);

Si (Wire.available() < = 2);

{

Z0 = Wire.read();

Z1 = Wire.read();

Z1 = Z1 << 8;

ZG = Z0 + Z1;

}

mantener el color constante contraining que para salir se utiliza el valor de X, Y Z.

XG = restringir (Xg,-272, 272);

YG = restringir (Yg,-272, 272);

ZG = restringir (Zg,-272, 272);

xfollow = mapa (Xg,-272, 272, 5, 250);

analogWrite (ledx, xfollow);

yfollow = mapa (Yg,-290, 250, 290, 5);

analogWrite (ledy, yfollow);

zfollow = mapa (Zg,-272, 272, 5, 250);

analogWrite (ledz, zfollow);

mantener el color constante contraining el valor

xfollow = restringir (xfollow, 1, 255);

yfollow = restringir (yfollow, 1, 255);

zfollow = restringir (zfollow, 1, 255);

Si (Yg > = 500 || YG < = -500) {}

countery ++;

Si (countery == 1) {}

MsTimer2::set (500, claro);

MsTimer2::start();

}

}

Si (countery > = 40) {}

stateY =! stateY;

retorno;

}

Serial.Print("Y=");

Serial.Print(YG);

Serial.Print ("CY =");

Serial.println(countery);

}

void fading() {}

auto-chaning color

analogWrite (ledx, valx);

analogWrite (ledy, valy);

analogWrite (ledz, valz);

VALX = valx + fadeAmount1;

Valy = valy + fadeAmount2;

Valz valz = fadeAmount3;

Si (valx < = 4 || valx > = 252) {}

fadeAmount1 = - fadeAmount1;

}

Si (valy < = 7 || valy > = 249) {}

fadeAmount2 = - fadeAmount2;

}

Si (valz < = 10 || valz > = 246) {}

fadeAmount3 = - fadeAmount3;

}

Delay(90);

Wire.beginTransmission(ADXAddress);

Wire.Write(Register_X0);

Wire.Write(Register_X1);

Wire.endTransmission();

Wire.requestFrom (ADXAddress, 2);

Si (Wire.available() < = 2);

{

X0 = Wire.read();

X1 = Wire.read();

X1 = X1 << 8;

XG = X0 + X1;

}

Si (Xg > = 500 || XG < = -500) {}

counterx ++;

Si (counterx == 1) {}

MsTimer2::set (500, claro);

MsTimer2::start();

}

}

Si (counterx > = 2) {}

stateX =! stateX;

retorno;

}

Serial.Print("X=");

Serial.Print(XG);

Serial.Print ("CX =");

Serial.println(counterx);
